AcRo Mini
Westire Acro Mini Series
Photocells
Photocells
Photocells
Photocells
Photocells
Clocks
& Outdoor Lighting Controls
Accuracy
The AcRo Mini series photocell utilises a filtered silicon based ambient light sensor and microprocessor control. This accurate combination provides the best energy savings and reliable operation
Longevity
Engineered in the EU with a 15 year design life and manufactured in-house using only high quality name brand components, the AcRo series photocells are renowned in the industry for their unparalleled quality and reliability
Features & Benefits
- Fully encapsulated electronic circuitry and light sensor are completely impervious to humidity and moisture.
- Designed to meet the needs of LED fixtures while still maintaining proven reliability for more traditional technologies.
- Electronic design outperforms thermal controls.
- Energy efficient design with an average power consumption <0.25 watts.
- Sensor window designed to survive all types of outdoor conditions.
- Rated for 400W HID or LED luminaire (Max 10 amps).
- A 48 hour operational burn-in test is performed on every unit before leaving the factory.
- UV stabilised polycarbonate housing is rated and tested to IP68.
- ROHS compliant.
Specification

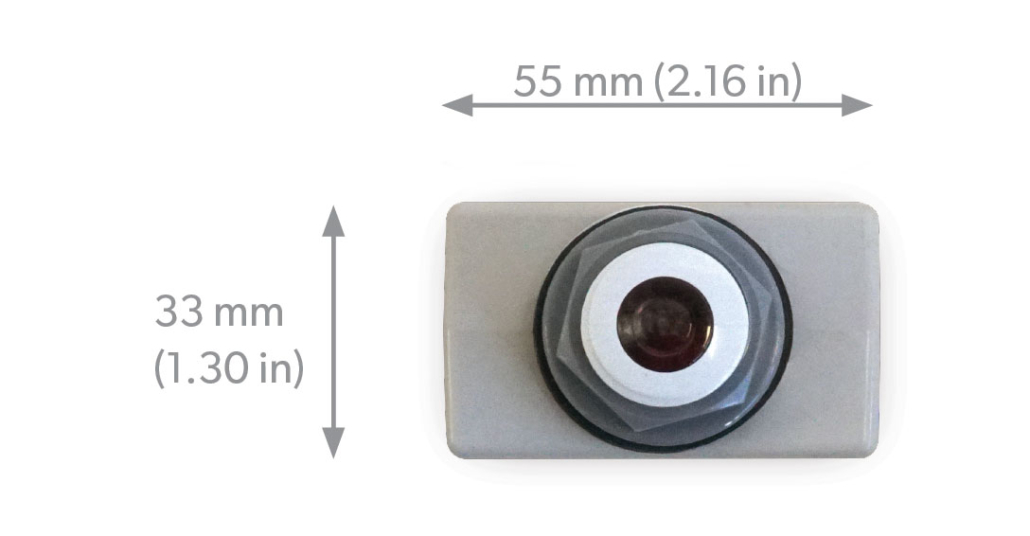

| Dimensions – Housing | 55mm L x 33mm D x 48mm H 2.16” L x 1.3” D x 1.88” H |

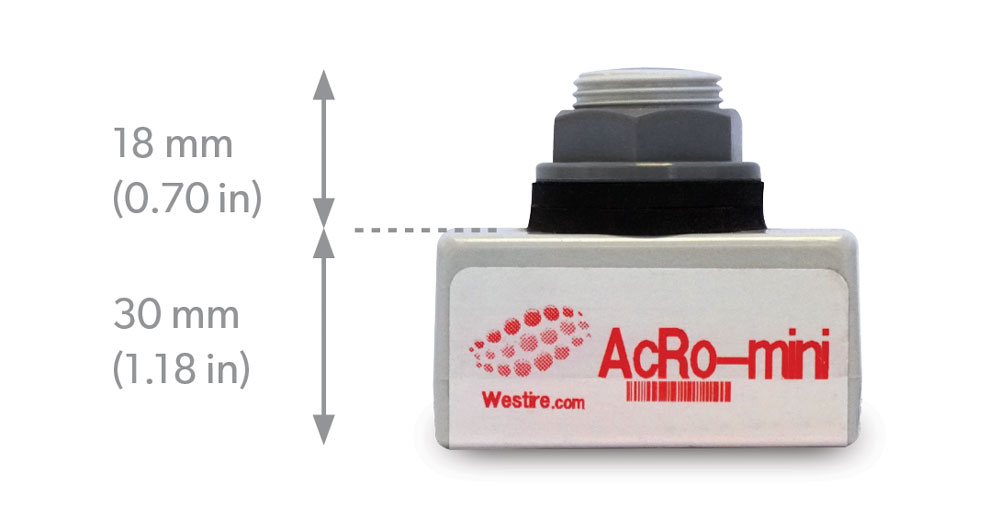

| Dimensions – Sensor Window | 12mm Ø x 18mm (M20) 0.47 Ø x 0.70” (M20) |
| Warranty | 8 years standard. 10 years available on request. |
| Mains Supply Voltage | 200 – 260 Volts AC – 50/60 Hz. |
| Power Supply Consumption | Less than 0.25 Watt |
| Max Load | 10 Amps |
| Load Rating | 1.8KVA Ballast / 1000 Watts |
| Operating Temperature | -20° C to +80° C -4° F to +176° F |
| Enclosure Protection Rating | IP67 UV stabilised Polycarbonate housing and unique light diffusion lens. Enclosure provides full protection from internal luminaire light leakage and ‘side-on’ internal refraction and IP67 sealing properties. |
| Standards Compliance | Environmental RoHS, EN55015, EN61547, EN6100-3-2, EN6100 -3-3 IEC 61347-1:2015, Low Voltage Directive 2014/35/EU IS EN ISO 9002: 2015, ANSI C136.24 2004 |
| Switch ‘On’ light levels | 10 to 120 Lux ± 0.025 1 to 11 fc ± 0.025 |
| Switching Ratio | 1:0.5 to 1:1.5 |
| Ambient Light Sensor | Color corrected photodiode + amplifier |
| Switching Time Delay | 25 Seconds or as specified |
| Switching Options | Dusk to Dawn. Part night option available. |
