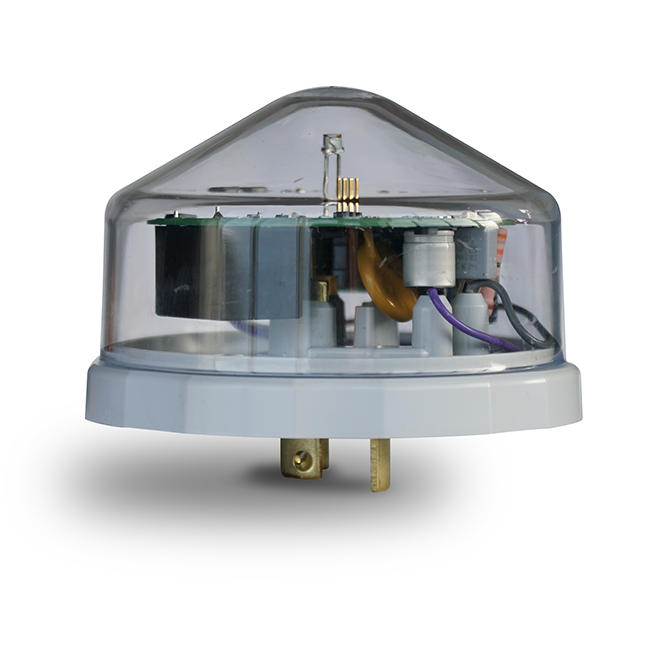

Westire 9500
DIMMING 0-10 VOLT PHOTOCEL
Photocells
Photocells
Photocells
Photocells
Photocells
Clocks
& Outdoor Lighting Controls
Accuracy
The Westire 9500 Dali dimming photocell is designed to reduce power consumption and is compatible with all 0 – 10 Volt LED drivers.
Longevity
Engineered in the EU with a 35 year design life and manufactured in-house using only high quality name brand components, the 8400 series photocells are renowned in the industry for their unparalleled quality and reliability.
Features & Benefits
- Compatible with all 0 – 10 volt LED drivers
- Incorporates all the features of the Westire gold standard dust-dawn 8480 & 9490 photocells
- Part-night, On/Off & Dimming schedules programmed to your specification
- Worlds most advanced A.I. Solar Time Clock algorithms
- Innovative overvoltage protection, protecting LED driver & light engine
- Self-correcting dimming and part-night function
- 320 Joule standard MOV protection, higher protection on request.
- Worlds top brand electronic components and materials used
- Polycarbonate housing is ultrasonically bonded, UV stabilised and rated to IP68.
- Upward facing units are designed to be self cleaning.
- 100% product testing; 48 hour burn-in, electrical and final inspection.
- Engineered, assembled & tested in our Irish manufacturing facility
- World’s top brand electronic components and materials used
Applications
- Delivering standalone dimming:
– Factory Standard Dimming Schedule or
– Customer Preference Dimming Schedule - Fits all LED luminaires equipped with ANSI/NEMA 5 & 7 pin twist lock sockets
- Dimming & controlling all types of outdoor street, road, security, amenity and campus lighting
- Interfaces with all Dali D4i LED smart drivers
- Wall mounting socket and bracket available
Specification
| Dimensions | 86.3 mm Ø x 53.34 mm H 3.4” Ø x 2.1” H |
| Connection Type | NEMA 5/7 Pin ANCI 136.10 |
| Warranty | 10 years |
| Mains Supply | 85V – 305V AC 50/60 Hertz |
| Surge Protection | 320 Joule 12,000 Amps |
| Maximum Load Current (A) | 10 Amps |
| Photocell Power | < 500mW |
| Operating Temperature | -20° C to + 80° C -4° F to + 176° F |
| Enclosure Protection Rating | IP68 (Ultrasonically bonded) |
| Standards Compliance | ANSI C136, DALI D4i IS EN ISO 9001: 2015, Environmental RoHS |
| Communications | Dali D4i |
| Switching Ratio | 1:05 to 1:3 – Inverse ratios available |
| Dimming Options | Multiple options from 1 – 100 |
| Light Level Switching | 35 Lux On / 18 Lux Off as standard. Other levels available on request. |
| Time Reference Stabilization | < 3 days |
| Switching | Relay zero point micro controlled switching |
