Critical Power Measurements

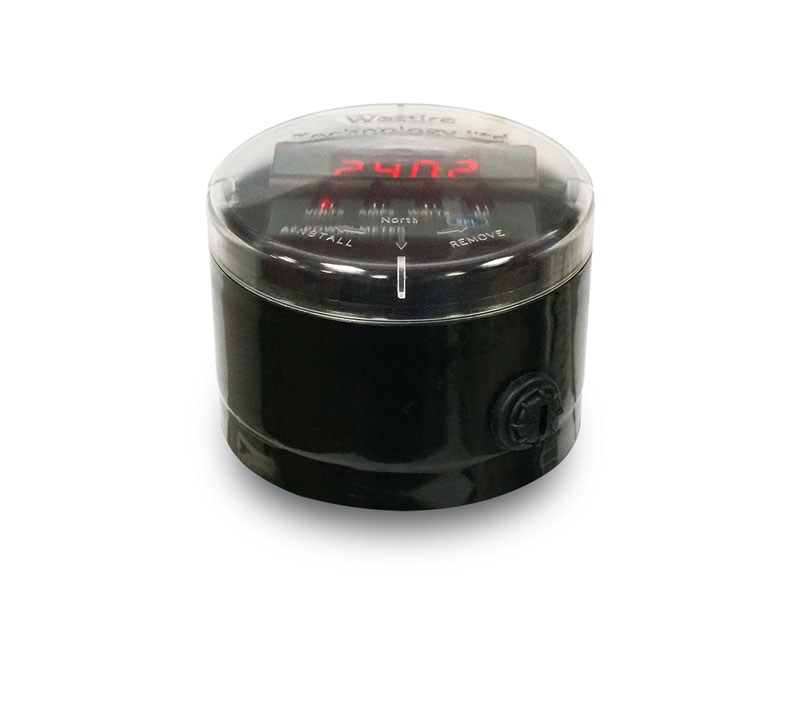

The unique Luminaire Multimeter measures and visually displays critical power measurements when commissioning or verifying luminaire power attributes.
True-rms readings

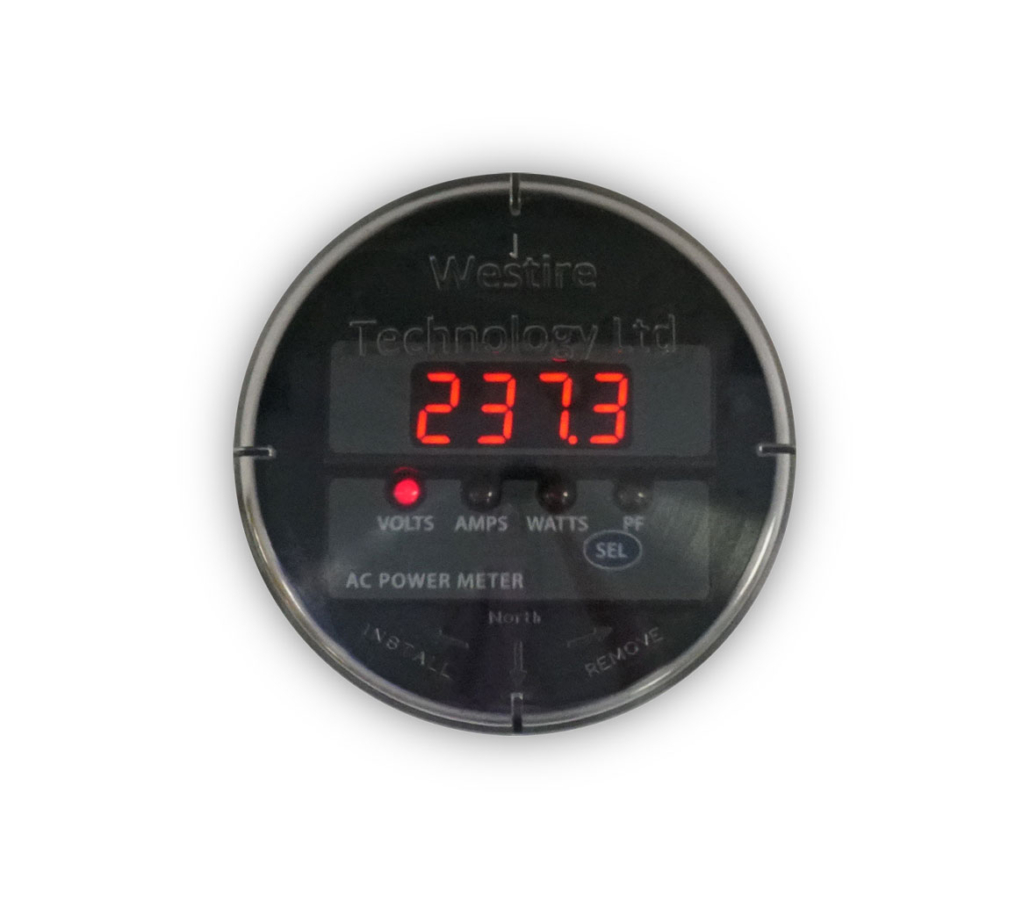

The Luminaire Multimeter utilises true-rms readings to accurately capture four critical measurements. The LED display continuously scrolls through Volts, Amps, Watts and Power Factor.
Features & Benefits

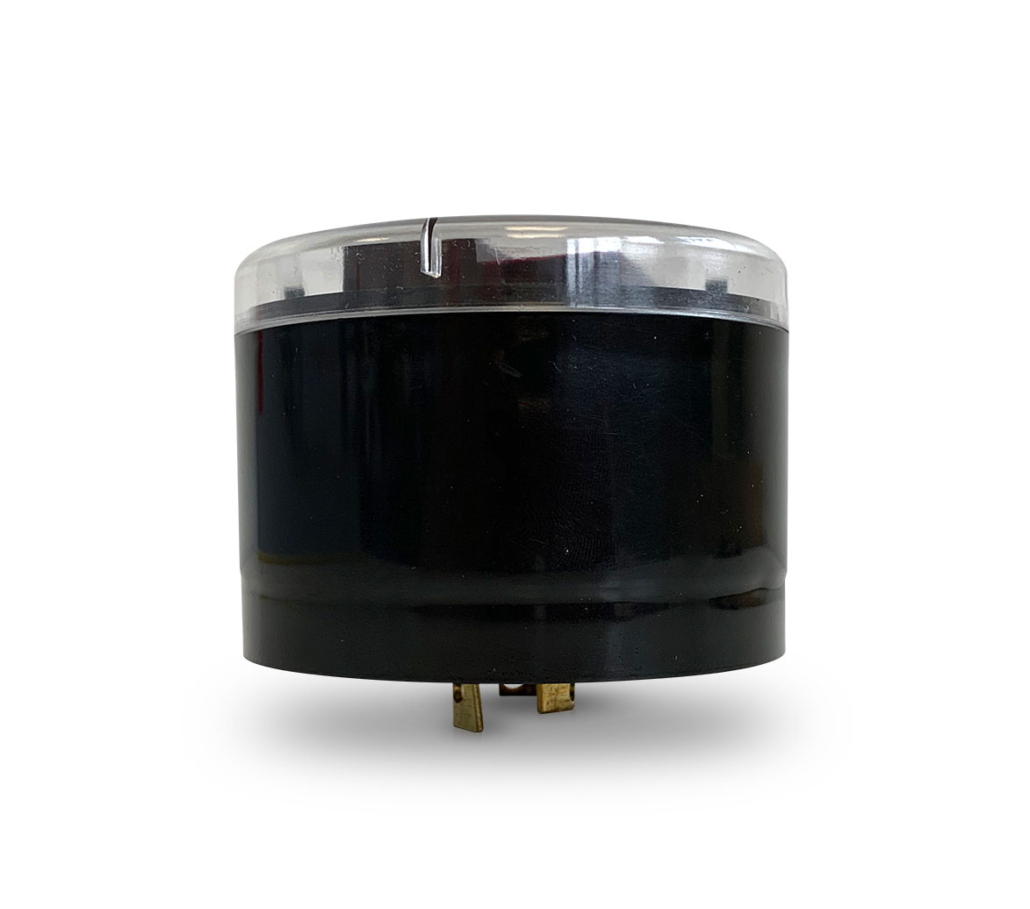

- ANSI 136.41 Receptacle / NEMA 3, 5 and 7 pin socket compatible interface .
- Fast plug in and power up to first readings.
- Automatic scrolling through Volt, Amp, Watt and PF measurements.
- Bright LED display readable in direct sunlight.
- Ultrasonically welded IP65 sealed.
- Robust design.
- UV stabilised Polycarbonate enclosure.
- 85-264Vac 47 – 63Hz operating range.
Applications
Ideal for Lighting fixture assembly processes, for luminaire power verification purposes and as an indispensable tool for Installation crews eliminating the requirement to open the fixture.
Specification
| Dimensions | 69.85 mm Ø x 53.34 mm H 2.1” Ø x 2.75” H |
| Warranty | 10 years |
| Connector type | ANSI C136.41 / NEMA 3 pin, 5 pin, 7 pin |
| Operating Temperature | -20⁰ C to +70⁰ C 4⁰ F to + 158⁰ F |
| Standards Compliance & Certifications | Environmental RoHS, EN55015, EN61547, EN6100-3-2, EN6100 -3-3 ETL UK 773, CSA 22.2, IS EN ISO 9002: 2015, ANSI C136.24 |
| Enclosure Protection Rating | IP 67 |
| Mains Supply | 85 Volts to 264 Volts AC – 47/63 Hz |
| Surge Protection | 132J standard 320J optional |
| Load Rating | 1800 VA Ballast / 1000 Watts |
| Sampling Rate: | 2 to 3 Samples / sec |
| Voltage Measuring Accuracy: | (3 samples) ± 1% |
| Current Measuring Accuracy: | (3 samples) ± 1% |
| Power Measuring Accuracy: | (3 samples) ± 2% |
| Frequency Accuracy: | (3 samples) ± 0.1 Hz |
