Overview
Westire’s ANSI/NEMA Mounting Bracket kit is ideal for mounting a locking type photocontroller on buildings, structures, walls or wooden poles. The mounting bracket can also be supplied as a kit which includes the NEMA socket, gasket, fastening screw, IP67 connecting cable and sealing grommet.
Longevity
Engineered and assembled in the EU, with a 15 year design life using only name brand components and high quality materials. Westire’s Mounting Brackets are renowned in the industry for their unparalleled quality and reliability.
Features & Benefits
- Ideal for surface mounting a locking type Photocell & Smart City photocells on poles, walls etc.
- Supplied as a kit which includes the ANSI C136.41 / NEMA socket, gasket, fastening screws, sealing IP 67 gland and the connecting cable.

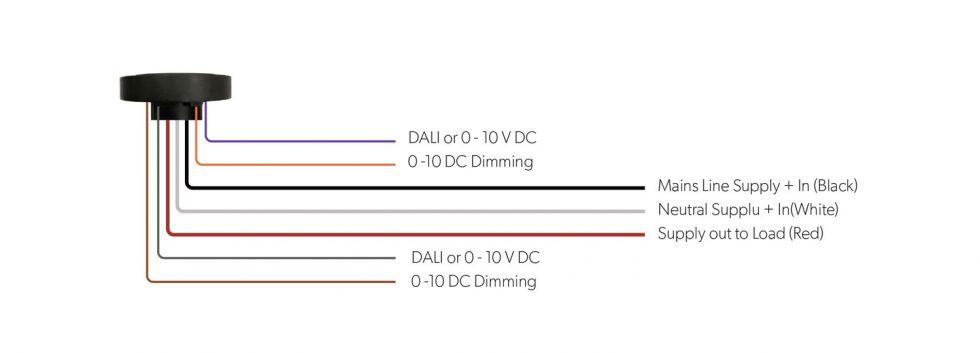

- Connection is 3 & 7 NEMA
- Compatible with 3 pin or 7 pin NEMA/ANSI C136 sockets.
- The mounting bracket is manufactured from the same UV stabilised materials as found in our Longlife Photocell products.
Specification
| Dimensions | 34 mm W x 85.7 mm H |
| Cable Length | Up to 3 m |
| Warranty | 10 Year Standard |
| Standards Compliance | Environmental RoHS, ANSI C136, BS5972 |
| Voltage | 600 Volts AC/DC |
| Load Current (A) | 15 Amps |
| Housing Material | Premium UV Stabilised Polycarbonate |
| Sealing Gasket | EDPM |
| Contacts | Solid Brass Contacts |
| Enclosure Protection Rating | IP65 |
| Cable Sealing Rating | IP67 |
| Operating Temperature | -40° C to +80° C -40° F to +176° F |
